MNR Installation of Dry Water Lines at 25 Stations on the Hudson, Harlem, and New Haven Lines
Facility & MEP Design
Owner
Location
Duration
Cost Data
Project Profile

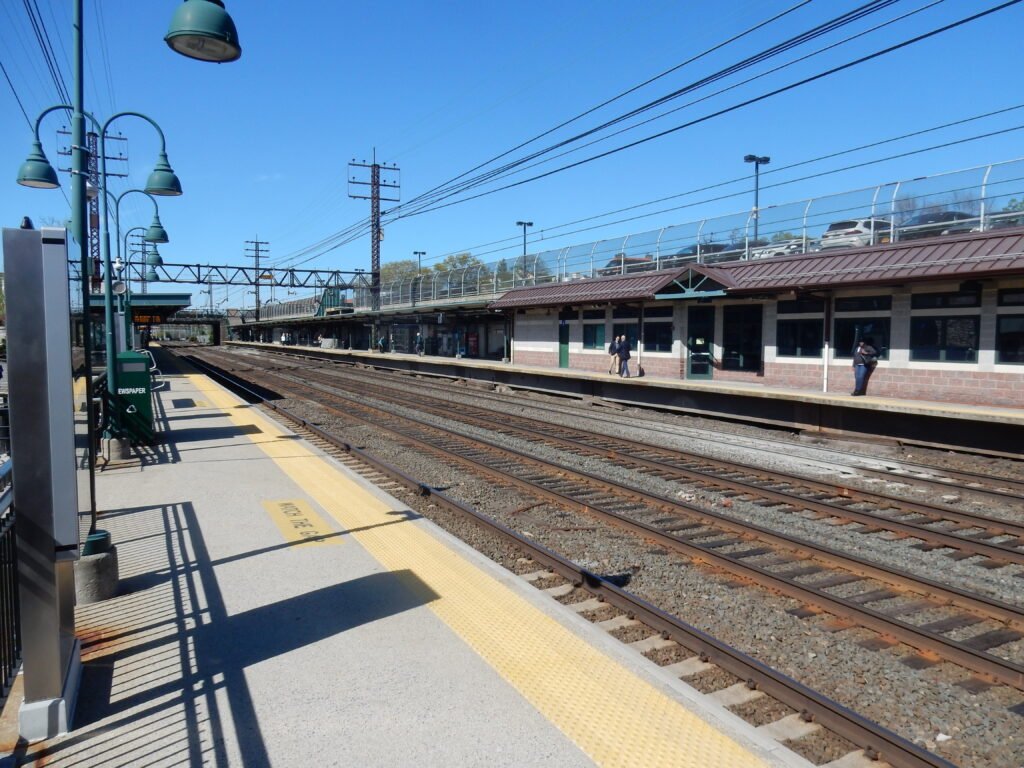

Metro-North Railroad conducts frequent cleaning of its stations (platforms, stairs, and overpasses) using high-pressure washers as part of its ongoing maintenance program. Above-ground high-pressure/high-temperature dry lines, consisting of water pipes, tubes, and fittings, are installed at numerous stations to allow maintenance crews to safely connect to a portable pressurized water source for cleaning tasks. In general, the piping consists of ¾” diameter galvanized steel pipe that runs from points A to B at each station, with an inlet every 120 feet (to accommodate 60-foot hoses). Twenty-five (25) stations on the Hudson, Harlem, and New Haven lines are identified to receive new dry line systems.
Garg’s duties for these various tasks include, but are not limited to:
- Data Collection and Site Investigation
- Development of backgrounds
- Site visits for 25 stations
- Updating/redlining architectural backgrounds
- Safety, Health, and Environmental Control Plan
- Preliminary Design (60% Level)
- Demo sheets
- Installation sheets
- Attachment/hanger detail review
- Seismic design parameters
- Construction Phase Services
- Full-time inspection
